Plan 9 on epaper (SPI driver)

Before the holidays I bought an 7.8 inch e-paper display from waveshare that connects to raspberry pi. It cost about 150$, but the specs are decent enough. It's definitely good enough for an e-book reader.

Resolution: 1872x1404 16-color grayscale
Refresh time: 450ms
Dot pitch: 0.0845mm x 0.0854mm (300.6 PPI)

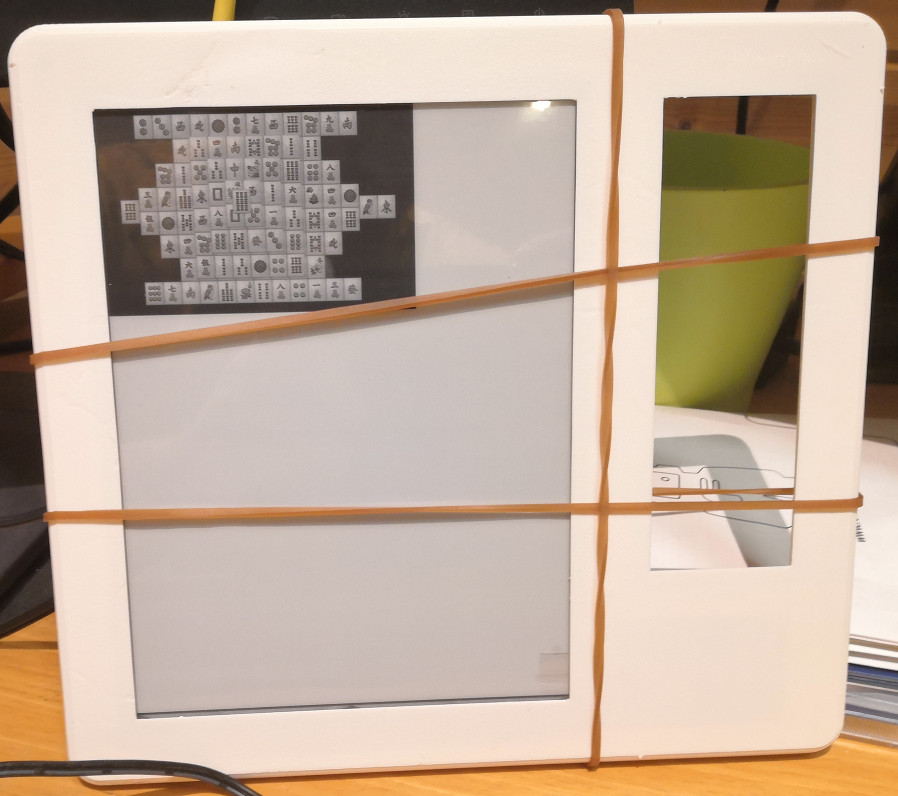

I wrote a driver to run Plan 9 terminal on this display. On the picture it's running 'games/mahjongg'. I got the serial peripheral interface driver to run fast enough that you could comfortably use this screen.

prototype

The visual stability in Plan 9 user interface makes it a good operating system for driving slow-framerate e-paper displays.

There's few obstacles before I can demonstrate this properly, I'll write about those later in this post. For now, lets go through the details.

Resources

I relied on the following resources to write the driver:

I feel like I was missing one or two essential manuals, but other than that I think this was enough to get it done.

How it was made

I'm going to present the changes in a sensible order. It's not the order where the code was developed in though.

I started by loading Richard Miller's 'spi.c' and 'devspi.c', I drove the SPI-interface from the userspace at first, then I wrote my own 'devit8951.c' -driver that I can access from the userspace. After I had something working, only then I went and modified the 'spi.c', 'dma.c' and finally rewrote the 'screen.c'.

I knew how to modify and recompile a kernel. There's a debugger and I recall reading that it's neat.

Likewise a disclaimer is worthwhile: I don't know anything about how this should be done. I just poked and read around, and got results.

Changes to the DMA driver

Direct memory access is piece of hardware aside CPU, copying bytes in/out from the system memory. Kernel leaves notes for the DMA controller, and the DMA controller interrupts the kernel when it finishes copying a note.

Richard Miller's SPI driver is rudimentary and only doing DMA. Upon trying the driver I found out it's able to transfer at most 32 bytes at once. However other drivers do not even engage the DMA on SPI unless there's more than 96 bytes to transfer.

After few hours of headscratching I figured out that I have to give a flag that tells the dma controller to wait for AXI write response to disallow writes from being stacked into the AXI bus pipeline. But giving this flag otherwise would slow things down, so it is only needed on SPI transfers.

The SPI driver must issue a read for every write request. I didn't get nil address writes/reads to work without giving src/dst ignore flags.

Here's the procedure to start the dma transfer. I'm going to pinpoint where the code was modified and how.

void
dmastart(int chan, int dev, int dir, void *src, void *dst, int len)
{
    Ctlr *ctlr;
    Cb *cb;
    int ti;

    ctlr = &dma[chan];
    if(ctlr->regs == nil){
        ctlr->regs = (u32int*)(DMAREGS + chan*Regsize);
        ctlr->cb = xspanalloc(sizeof(Cb), Cbalign, 0);
        assert(ctlr->cb != nil);
        dmaregs[Enable] |= 1<<chan;
        ctlr->regs[Cs] = Reset;
        while(ctlr->regs[Cs] & Reset)
            ;
        intrenable(IRQDMA(chan), dmainterrupt, ctlr, BUSUNKNOWN, "dma");
    }
    ctlr->len = len;
    cb = ctlr->cb;
    ti = 0;
    switch(dir){
    case DmaD2M:
        ctlr->flush = dst;

This condition block was introduced to add the Destignore -flag when a nil address is supplied.

        if(dst==nil){
            ti = Srcdreq | Destignore;
        }else{
            dmaflush(1, dst, len);
            ti = Srcdreq | Destinc;
        }
        cb->sourcead = dmaioaddr(src);
        cb->destad = dmaaddr(dst);
        break;
    case DmaM2D:
        ctlr->flush = nil;

Here's another one for the source address, in case we do writes that need to supply nulls.

        if(src==nil){
            ti = Destdreq | Srcignore;
        }else{
            dmaflush(1, src, len);
            ti = Destdreq | Srcinc;
        }
        cb->sourcead = dmaaddr(src);
        cb->destad = dmaioaddr(dst);
        break;
    case DmaM2M:
        ctlr->flush = dst;
        dmaflush(1, dst, len);
        dmaflush(1, src, len);
        ti = Srcinc | Destinc;
        cb->sourcead = dmaaddr(src);
        cb->destad = dmaaddr(dst);
        break;
    }

Finally here's a condition block to introduce Waitresp and disable interrupt if the dma channel is for the SPI transfer.

    if(chan==DmaChanSpiTx){
        cb->ti = ti | dev<<Permapshift | Waitresp;
    }
    else{
        cb->ti = ti | dev<<Permapshift | Inten;
    }
    cb->txfrlen = len;
    cb->stride = 0;
    cb->nextconbk = 0;
    dmaflush(1, cb, sizeof(Cb));
    ctlr->regs[Cs] = 0;
    microdelay(1);
    ctlr->regs[Conblkad] = dmaaddr(cb);
    DBG print("dma start: %ux %ux %ux %ux %ux %ux\n",
        cb->ti, cb->sourcead, cb->destad, cb->txfrlen,
        cb->stride, cb->nextconbk);
    DBG print("intstatus %ux\n", dmaregs[Intstatus]);
    dmaregs[Intstatus] = 0;
    ctlr->regs[Cs] = Int;
    microdelay(1);
    coherence();
    DBG dumpdregs("before Active", ctlr->regs);
    ctlr->regs[Cs] = Active;
    DBG dumpdregs("after Active", ctlr->regs);
}

I don't like about these changes because they introduce condition blocks that are only required for driving something through SPI.

SPI driver

In the 'spi.c' driver, I actually didn't do much anything interesting. It originally wrote to the memory location it read from. I split it into two.

void
spirw(uint cs, void *wbuf, void *rbuf, int len)
{
    Spiregs *r;
    int mode;

    assert(cs <= 2);
    assert(len < (1<<16));
    qlock(&spi.lock);
    if(waserror()){
        qunlock(&spi.lock);
        nexterror();
    }
    if(spi.regs == 0)
        spiinit();

    r = spi.regs;
    mode = r->cs & (Cpha | Cpol);
    r->cs = Dmaen | Adcs;

Well here's a thing I changed. I did peek at the datasheet and concluded that this code was valid. However I think this felt more like what the datasheet proposes: Activate the DMA transfer, then give the first 4 bytes directly. These first 4 bytes is a command for the SPI controller that tells how many bytes it needs to read. It can be also given in the dma transfer itself.

    r->data = (len << 16) | (cs << Csshift) | Rxclear | Txclear | Ta | mode;

    //r->dlen = len;
    //r->cs = (r->cs & (Cpha | Cpol)) | (cs << Csshift) | Rxclear | Txclear | Dmaen | Adcs | Ta;
    /*
     * Start write channel before read channel - cache wb before inv
     */
    dmastart(DmaChanSpiTx, DmaDevSpiTx, DmaM2D,
        wbuf, &r->data, len);
    dmastart(DmaChanSpiRx, DmaDevSpiRx, DmaD2M,
        &r->data, rbuf, len);
    if(dmawait(DmaChanSpiRx) < 0)
        error(Eio);
    //cachedinvse(rbuf, len); this is already done.
    r->cs &= (Cpha | Cpol);
    qunlock(&spi.lock);
    poperror();
}

I recall reading that BCM allows you to chain the dma calls. I don't need that feature, as you soon see why.

Screen driver

Each Plan 9 terminal has an exactly one screen. The e-paper display replaces the system that'd otherwise draw to the HDMI screen.

It's possible to resize the display. I know because 'aux/vga' -command can change the screen resolution.

The following 'screen.c' interacts with the 'devdraw.c' to provide a screen. Drawing driver itself is portable, same across platforms.

#include "u.h"
#include "../port/lib.h"
#include "mem.h"
#include "dat.h"
#include "fns.h"

#define Image   IMAGE
#include <draw.h>
#include <memdraw.h>
#include <cursor.h>
#include "screen.h"

The gscreen -is accessed from the 'devmouse.c', therefore it needs to be visible outside this file. I was wondering how that happens, but of course it's like this.

I provide some pin mappings here to configure the communication with the display.

I also provide the display width/height here, because I also need to provide the driving voltage. It's weird because the 'devinfo' provides the dimensions but not the driving voltage. Meh, I guess somebody just messed something up there.

Memimage *gscreen;

#define PIN_CE0     8
#define PIN_HRDY    24
#define PIN_RESET   17
#define SPI0_MISO   9
#define SPI0_MOSI   10
#define SPI0_SCLK   11

#define FUNC_IN     0
#define FUNC_OUT    1
#define FUNC_ALT0   4

#define SWIDTH  1872
#define SHEIGHT 1404
#define VCOM    1500

#define DEVINFO_SIZE 40
static u8int devinfo[DEVINFO_SIZE];

The e-paper uses some other protocol but drives it with the SPI controller. This other protocol requires that we wait for HRDY -pin to flip 1 before we send a message.

static void
waithrdy(void)
{
    while(gpioin(PIN_HRDY) != 1);
}

static void
writecmd(long cmdcode)
{
    u8int data[4] = { 0x60, 0x00, cmdcode >> 8, cmdcode };
    waithrdy();
    gpioout(PIN_CE0, 0);
    spirw(0, &data[0], nil, 2);
    waithrdy();
    spirw(0, &data[2], nil, 2);
    gpioout(PIN_CE0, 1);
}

static void
writedata(u8int *block, ulong count)
{
    u8int data[2] = { 0x00, 0x00 };
    waithrdy();
    gpioout(PIN_CE0, 0);
    spirw(0, &data[0], nil, 2);
    waithrdy();
    spirw(0, block, nil, count);
    gpioout(PIN_CE0, 1);
}

static void
writeword(long w)
{
    u8int data[2] = { w >> 8, w };
    writedata(data, 2);
}

static void
readdata(u8int *block, ulong count)
{
    u8int data[4] = { 0x10, 0x00, 0x00, 0x00 };
    waithrdy();
    gpioout(PIN_CE0, 0);
    spirw(0, &data[0], nil, 2);
    waithrdy();
    spirw(0, &data[2], nil, 2);

    for (int i=0; i < count; i+=2){
        waithrdy();
        spirw(0, &block[i], &block[i], 2);
    }

    gpioout(PIN_CE0, 1);
}

static long
readword(void)
{
    u8int data[2];
    readdata(data, 2);
    return ((long)(data[0])<<8) | data[1];
}

The short commands piece together into bigger commands.

static long
readreg(long address)
{
    writecmd(0x0010); // reg rd
    writeword(address);
    return readword();
}

static void
writereg(long address, long value)
{
    writecmd(0x0011); // reg wr
    writeword(address);
    writeword(value);
}

static void
getdevinfo(void)
{
    memset(devinfo, 0, DEVINFO_SIZE);
    writecmd(0x0302); // get dev info
    readdata(devinfo, DEVINFO_SIZE);
}

static long
getvcom(void)
{
    writecmd(0x0039); // vcom
    writeword(0);     // read
    return readword();
}

static void
setvcom(long vcom)
{
    writecmd(0x0039); // vcom
    writeword(1);     // write
    writeword(vcom);
}

static void
waitdisplay(void)
{
    while(readreg(0x1224)); // LUTAFSR=0 when free
}

static void
displayarea(long x, long y, long w, long h, long mode)
{
    writecmd(0x0034); // dpy area
    writeword(x);
    writeword(y);
    writeword(w);
    writeword(h);
    writeword(mode);
}

The display is initialized on-demand. I did it this way because I'm not sure how to initialize the gpio/spi when the screen is supposed to be initialized. Otherwise this does as instructed in the datasheet, except that the slowed down spiclock on the "bootup" is my doing.

static init = 0;
static void
displayinit(void)
{
    init = 1;
    spimode(0);
    spiclock(10);
    gpiosel(PIN_CE0, FUNC_OUT);
    gpiosel(PIN_RESET, FUNC_OUT);
    gpiosel(PIN_HRDY, FUNC_IN);

    // the reset signal
    gpioout(PIN_CE0, 1);
    gpioout(PIN_RESET, 0);
    delay(100);
    gpioout(PIN_RESET, 1);

    getdevinfo();

    writereg(0x0004, 0x0001); // enable I80 packed mode

    if (VCOM != getvcom())
    {
        setvcom(VCOM);
    }
    spiclock(100);

    displayarea(0, 0, SWIDTH, SHEIGHT, 0); // just to see whether anybody's home.
}

The cursor manipulation controls are as they were in the original 'screen.c', they provide software cursor. Though it'd be likely better for me to provide a hardware cursor because there'd be a faster mode on this display precisely for rendering such a cursor.

void
cursoron(void){
    swcursorhide(0);
    swcursordraw(mousexy());
}

void
cursoroff(void){
    swcursorhide(0);
}

void
setcursor(Cursor *curs){
    swcursorload(curs);
}

I take the advantage of having to know the VCOM in advance, and initialize the screen here. I draw the screen rotated 90 degrees because I intend to mainly read with this thing.

I like that memimage got 4-bit grayscale images. It's almost if this thing was designed for driving e-paper displays.

void
screeninit(void){
    Rectangle r = { {0, 0}, {SHEIGHT, SWIDTH} };

    memimageinit();
    gscreen = allocmemimage(r, GREY4);

    swcursorinit();

    gpiomeminit();

    conf.monitor = 1;
}

I can also make use of the partial screen updates. This is the part that uploads the image to the display.

void
flushmemscreen(Rectangle r)
{
    int w, h, s;
    uchar *base;

    waitdisplay();

    // framebuffer pointer
    writereg(0x020A, (((long)devinfo[6])<<8)|(long)devinfo[7]);
    writereg(0x0208, (((long)devinfo[4])<<8)|(long)devinfo[5]);

    // align the partial update to a boundary
    // where we don't need to shift bytes around.
    r.min.x = r.min.x&(~3);
    r.max.x = (r.max.x+3)&(~3);
    w = r.max.x - r.min.x;
    h = r.max.y - r.min.y;
    base = byteaddr(gscreen, r.min);

    writecmd(0x0021); // load img area start
    writeword((1<<8)|(2<<4)|1); // format (big endian, 4bpp pixelformat, rotate 90)
    writeword(r.min.x);
    writeword(r.min.y);
    writeword(w);
    writeword(h);

    s = w/2;
    for(int j = 0; j < h; j++){
        writedata(base, s);
        base += gscreen->width*sizeof(ulong);
    }
    writecmd(0x0022); // img end

    // 6 : fast chitty flipping
    // 2 : slow but good flip
    displayarea(r.min.y, SHEIGHT-r.max.x, h, w, 2);
}

This part is invoked by the 'devdraw.c'.

Memdata*
attachscreen(Rectangle *r, ulong *chan, int* depth, int *width, int *softscreen)
{
    if(gscreen == nil)
        return nil;
    if(init==0)
        displayinit();

    *r = gscreen->r;
    *chan = gscreen->chan;
    *depth = gscreen->depth;
    *width = gscreen->width;
    *softscreen = 1;

    gscreen->data->ref++;
    return gscreen->data;
}

void
getcolor(ulong p, ulong *pr, ulong *pg, ulong *pb)
{
    USED(p, pr, pg, pb);
}

int
setcolor(ulong p, ulong r, ulong g, ulong b)
{
    USED(p, r, g, b);
    return 0;
}

void
blankscreen(int)
{
}

The few remaining functions provide something useful, but we don't need them for now.

All of this is enough for me to run the display. I like that overall it's simple and I may improve it later if I like to.

If I keep using this longer then sure I may eventually want to make this a bit smarter.

Performance

Eventually somebody asks. It takes between 50-200ms to transfer the full screen image through SPI. I find that acceptable for a prototype.

If you care about performance, you may like to consider the HDMI-hat recently introduced by waveshare. The price of 7.8inch e-paper-hdmi combo is 260$ though but it's probably more useful for somebody who just wants a display.

What's the catch?

I'd believe these first-generation e-paper displays eventually get really cheap. That likely happens when the tech gets better, I dunno if that's already the case. Plan 9 is extremely lightweight. On raspberry pi it boots in 7 seconds. I'd believe with careful choice of hardware it could boot up in an instant.

Aside being cheap to run it was designed to compose together. Set a plan 9 filesystem to your home and configure your e-paper screens to become terminals on that system. Now they no longer need their own storage.

Obstacles

I'll build a small laptop with an e-paper display. There's bit of things to do before I get there.

  1. There's something going on with the usb. It does not recognize my custom-built mouse as a mouse. I don't know why and I'll eventually investigate on that a bit.
  2. Plan 9 has a general purpose document viewer. I tried this out and overall it works great, but it is very slow. I think I'll peek in and see what's going on there.
  3. The frame I printed for the screen is off alignment. I also haven't designed how the keyboard mounts to the screen. I'd want a detachable foldable split usb-connected 50-key keyboard+trackball combo.
  4. I probably want some front-panel control, to allow some navigation even if the keyboard was disconnected. Instead of wasting an Arduino I likely solder some wires to the driver board and write an another driver.

No more demos really?

Well, here's one.
